Products

Acrylic Pipes (10 - 63 mm O. D. Range)

Smaller Acrylic Pipes are available in the following outer diametre and inner diametre combinations, the standard length being 1 metre. Each of the available combinations has a different rate value which is then factored on a per metre basis.

Sl. No.	Size - O. D. (in mm)	Size - I. D. (in mm)	Standard Length
1	08.00	04.00	2 Meter.
2	10.00	06.00	2 Meter.
3	12.00	08.00	2 Meter.
4	13.00	10.00	2 Meter.
5	15.00	11.00	2 Meter.
6	18.00	12.00	2 Meter.
7	20.00	15.50	2 Meter.
8	25.00	20.00	2 Meter.
9	30.00	25.00	2 Meter.
10	32.00	25.00	2 Meter.
11	35.00	25.00	2 Meter.
12	35.00	30.00	2 Meter.
13	38.00	30.00	2 Meter.
14	38.00	32.00	2 Meter.
15	40.00	30.00	2 Meter.
16	40.00	34.50	2 Meter.
17	45.00	39.20	2 Meter.
18	50.00	40.00	2 Meter.
19	50.00	44.00	2 Meter.
20	51.00	46.00	2 Meter.
21	55.00	49.00	2 Meter.
22	60.00	50.00	2 Meter.
23	60.00	54.00	2 Meter.
24	63.00	58.60	2 Meter.

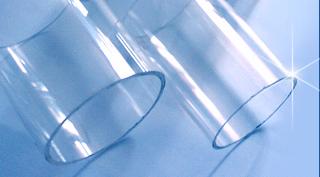

Acrylic Pipes (70 - 650 mm O. D. Range)

Larger Acrylic Pipes are available in outer diametre sizes of 70, 75, 82, 90, 95, 100, 108, 110, 115, 120, 125, 130, 140, 150, 160, 190, 200, 250, or 310 mm with wall thickness values of 3, 4 or 5mm. Special sizes with outer diametre values 500, 600, or 650 mm and wall thickness values ranging anywhere from 6 mm to 10 mm can also be supplied on clients' request. The rates are calculated per 600 mm length depending upon the O. D. size, the wall thickness of the specific pipe. We also offer special rates on per metre length basis for pipes with outer diametre values of 75 and 100 mm.

Sl. No.	Size In mm O.D.	ID (Wall Thickness of 3mm)	ID (Wall Thickness of 4mm)	ID (Wall Thickness of 5mm)
1	70	64	62	60
2	75	69	67	65
3	82	76	74	72
4	90	84	82	80
5	95	89	87	85
6	100	94	92	90
7	108	102	100	98
8	110	104	102	100
9	115	109	107	105
10	120	114	112	110
11	125	119	117	115
12	130	124	122	120
13	140	134	132	130
14	150	144	142	140
15	160	--------	152	150
16	165	--------	157	155
17	190	--------	182	180
18	200	--------	192	190
19	250	--------	242	240
20	300	--------	292	290
21	310	--------	302	300

Top

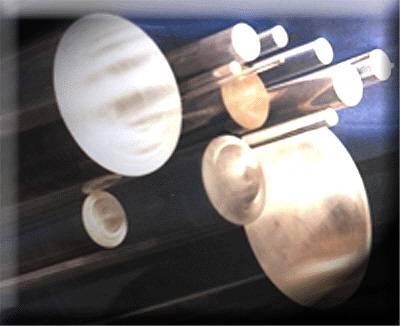

Acrylic Rods

Acrylic Rods are available in 5.00, 6.00, 8.00, 10.00, 12.50, 15.00, 18.00, 20.00, or 25.00 mm sizes, the standard length being 1 m. Rates are calculated on a per metre basis depending on the size required. We also deal with imported acrylic rods of lengths ranging from 1 to 2 feet with diametre value in the range 5 to 300 mm.

Sl. No.	Size in mm	Standard Length In Meter
1	5.00	1
2	6.00	1
3	8.00	1
4	10.00	1
5	12.50	1
6	15.00	1
7	18.00	1
8	20.00	1
9	25.00	1
10	30.00	1
11	32.00	1
12	35.00	1

Top

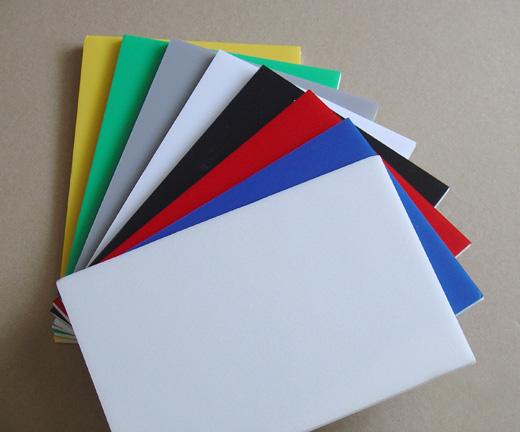

P. V. C. Foam Boards (Sun- Board)

P. V. C. Foam Boards are resistant to chemicals, waterproof, termite proof and are rot & sag free. Being made of a fire retardant material foam boards have a superior finish on both sides and are maintenance free. Foam Boards are dimensionally stable i.e., they do not warp or swell and lend themselves to thermoforming. Further, a foam board bonds readily with other materials and also with itself and has excellent sound & thermal insulator properties. For these reasons, P. V. C. Foam Boards are an ideal alternative to wood and can be used anywhere wood can.

Top

P.P. Flute Board

PP Flute Board is an extruded hollow profile consisting of two flat walls connected by vertical ribs. Sheets are produced by state of art profile extrusion plant in various attractive & eye catching colors. The main purpose of this sheets are Advertising, P.P. Flute Board re usable Boxes Etc…

The Standard Sizes are: 48” X 72” & 51” X 79” – Standard Colors White, Yellow, Red, Violet, Black and Grey.

Top

P.P. Glow Sign Sheets

We are selling The P.P. Glowsign Sheets with the Brand Name of POLYLITE.
P.P. Glow Sign Sheets are an Extruded Sheets Mainly Used for the Glowsign Boards, Display Ads Etc…

The Standard Length is 100 Ft Lg and the Maximum Length We Can Provide until 250 Ft Lg. With The Height Starting From 2Ft, 2.5Ft, 3Ft, 4Ft. With The Standard Thickness starting from 0.5mm to 7.0mm.

Top

Other Products in our Portfolio



Acrylic Blocks	Acrylic Pipes Greater Than 70mm O.D. (1)	Acrylic Pipes Greater Than 70mm O.D. (2)


Acrylic Rod (2)	Acrylic Rod (3)	Acrylic Rod (4)

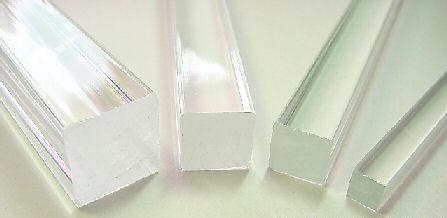

Acrylic Square Rods	P.P. Flute Board	Poly Carbonate (Multiwall) Sheets
